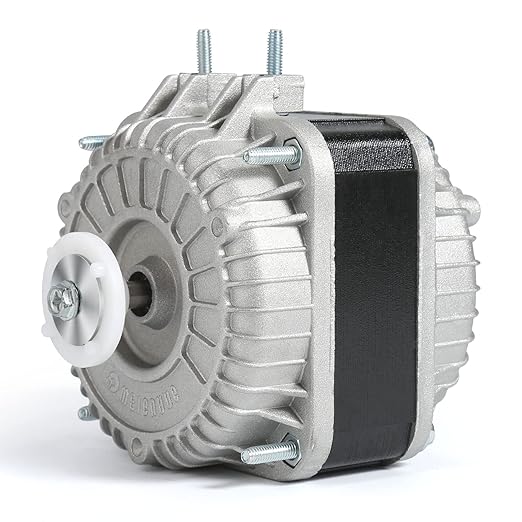

Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)

Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)

$62.68
Skip to product information
Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
  • Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)
Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)

Condenser Fan AC Motor YZF10-20,Input Power 55W Output Power 10W Shaded Pole Motor for Refrigerator,Freezer,Small Ventilation Rquipment,UL Approved (120V 60Hz YZF10-20)

$62.68

About This

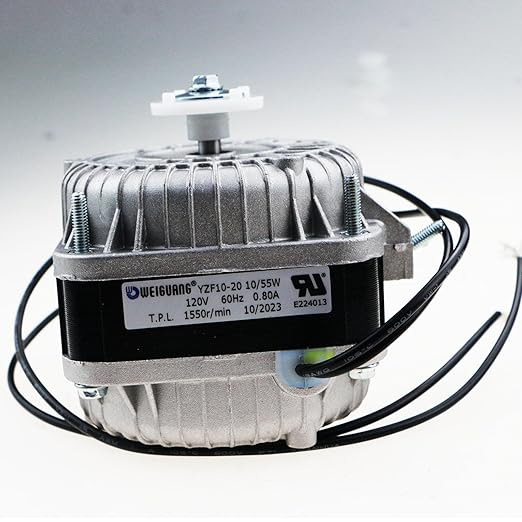

  • Specifications:120V 60Hz shaded pole AC motor YZF10-20,Input power 55W, Output power 10W, Current 0.8A, Rotational speed 1550r/min,UL certification,Widely used in condenser fan motor in refrigeration equipment
  • Working Environment:YZF10-20 AC motor is Class B insulation, and has built-in overheat protector, the protection temperature is 257 °F, the motor can work continuously in -13 °F to 122 °F ambient temperature
  • Load Capacity:YZF10-20 fan motor the maximum fan blades size that can be used is Φ230,28°，rated air volume 800m3/h，using sleeve bearing and can work continuously for more than 20,000 hours

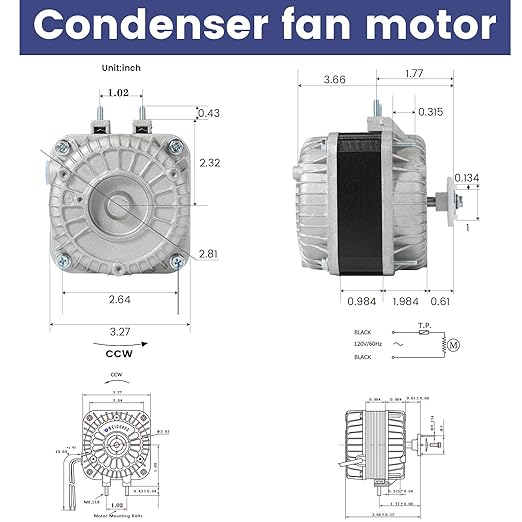

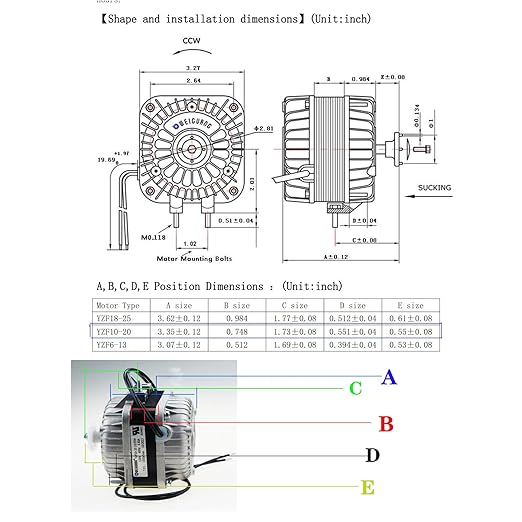

  • Installation Mode：YZF10-20 motor mounting pin spacing is 1.02 inches，it needs to be mounted horizontally or vertically with mounting brackets，the motor rotates counterclockwise

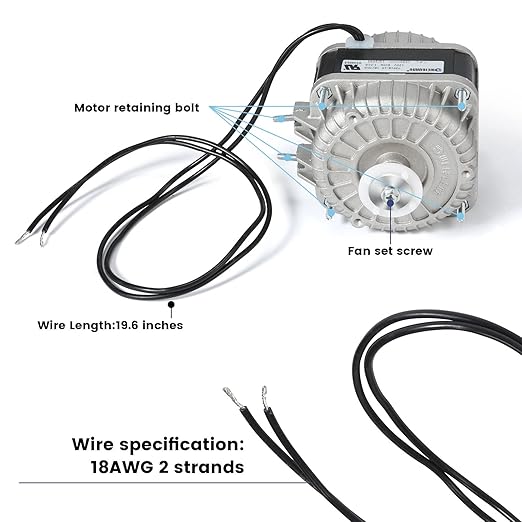

  • Connecting wire: Motor has two leads, specification 18AWG, UL certification, line length 19.68-21.65 inches, used to connect the two poles of the power supply, motor housing grounding wire

Overview

  • Brand : WEFUMOT
  • Speed : 1550 RPM
  • Voltage : 120 Volts
  • Horsepower : 18 Watts
  • Product Dimensions : 3.35"W x 4.53"H
